One of the most significant shifts in modern healthcare is moving away from perimeter-based toward identity-based healthcare security. And this shift is driven by the rapid adoption of API-first architecture, seamless data flows, integrations with third-party apps, and cloud-based services.

In a perimeter-based system, the security approach was to trust everything inside the system, given all access, and external access was seen as a threat. However,  in modern healthcare, this approach is no longer safe in an interconnected environment.

That’s why healthcare API security works on a Zero Trust policy, where nothing is trusted, and every request is authenticated, validated, and authorized. The reason for adopting this approach is that, in an API-driven ecosystem, every exposed entry point is a potential access point to sensitive patient data.

To eliminate this gap, modern healthcare API security depends on three measures:

• OAuth 2.0 for secure authentication
• SMART Scopes for deciding authorized, context-aware data scopes
• HIPAA Compliance for API regulatory safeguards

Most importantly, what healthcare organizations must remember is to maintain a balance between data liquidity and compliance. Although seamless data exchange is necessary for adapting to new technologies, protecting PHI and building compliant systems is non-negotiable.

In this guide, we will break down the core security risks and the best practices for implementing healthcare API security OAuth HIPAA strategies for ensuring compliance without compromising flexibility and scalability.

Core Security Risks in Healthcare APIs

Although the API-driven healthcare systems make data exchange faster, it also expands the attack surface. This is because every API endpoint is a potential entry point to access sensitive PHI. Here are some of the core security risks that may impact patient data security and privacy:

• Unauthorized Access & Token Misuse: This is the most common and dangerous risk if the access tokens are not handled properly. In OAuth 2.0-based systems, these tokens are keys to access sensitive patient data. If these tokens are not stored properly in browser storage, mobile apps, or are stored in non-encrypted or unvalidated forms, then they can be intercepted or reused by unauthorized users.
• Overexposed FHIR Endpoints: Another risk is the overexposed FHIR APIs. These APIs are designed for flexibility; this flexibility can expose patient data if the endpoints are not protected properly. If these are overexposed, then it can lead to access to the entire patient records and data is not restricted by context or role.
• Data Leakage During Transmission: One more risk is data leakage during data transmission if there is no end-to-end encryption for data pathways. Moreover, if there is a weak TLS configuration and improper certificate validation, it may lead to possible interpretation of PHI in transit or man-in-the-middle (MITM) attacks. So, in healthcare, even a single exposed API can mean a reportable breach.
• Compliance Risks (HIPAA Violations): When the APIs are implemented, they do not automatically align with compliance. However, there are some common gaps where compliance risks occur, such as no audit logging of API access, lack of role-based access control, and over-permissioned systems. That’s why it is important to manage HIPAA compliance, which needs an auditable, unauthorized exposure trigger for accountability.

This is why implementing healthcare API security is important for building secure, scalable, and interoperable healthcare systems. Let’s understand how security frameworks such as OAuth 2.0, SMART on FHIR scopes, and HIPAA compliance work.

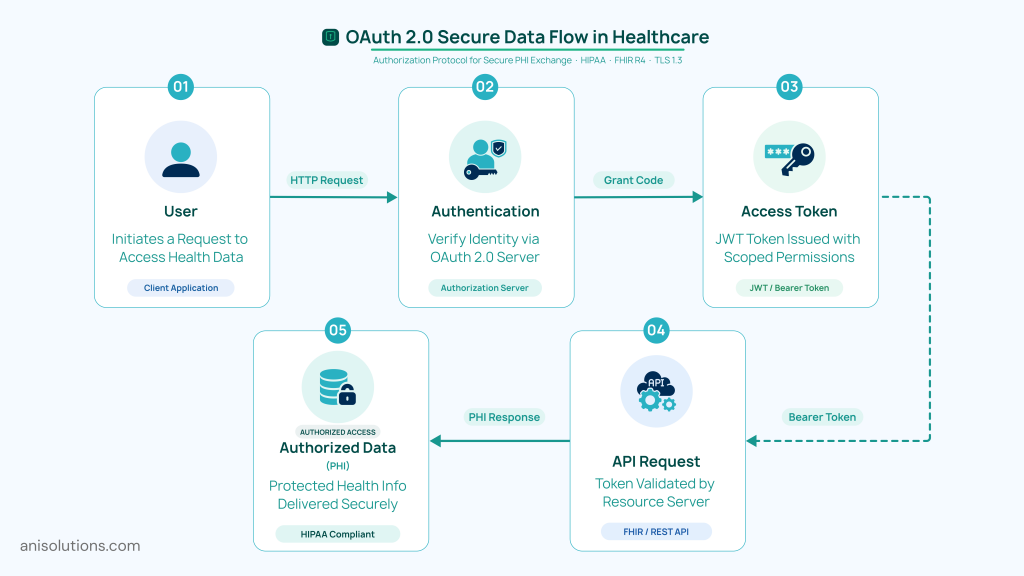

The Authentication Gold Standard: OAuth 2.0 for Healthcare

With healthcare systems adopting API-driven architecture, securing healthcare APIs with OAuth 2.0 becomes essential. The OAuth 2.0 for healthcare authenticates and authorizes access to patient data, controlling who can access sensitive PHI.

Moreover, the OAuth 2.0 enables access to sensitive PHI without compromising user credentials. Rather than sharing usernames and passwords every time, it authenticates users through an Identity Provider (IdP). These IdPs issue secure access tokens for requesting data from APIs, ensuring the access to patient data is controlled and traceable.

There are three types of OAuth tokens: access tokens for short-term access to APIs. Then there are refresh tokens, which allow renewal of access securely without needing to reauthenticate.

Finally, the identity providers (IdPs) verify identity and manage authentication workflows, ensuring that the right person is accessing the data. More importantly, OpenID Connect and OAuth 2.0 are different, as OpenID Connect provides an identity layer to confirm the identity of a user, whereas OAuth 2.0 authorizes the data allowed to be accessed by that identity or role.

When implemented correctly, the OAuth 2.0 ensures that both patient-to-provider and system-to-system data exchange remains secure, without compromising interoperability.

Authorization Precision: Implementing SMART Scopes for FHIR

OAuth 2.0 sets the foundation for who can access the data in the system, whereas SMART scopes define what data is accessed specifically. With SMART on FHIR, secure healthcare organizations enable context-aware and precise access control and extend OAuth 2.0 protection.

SMART scopes define access using a structured and clear format, and the format looks like context/resource.permission. To give you an example, the format patient/Observation.read allows only an application to read clinical observations, such as lab results or vitals, for a specific patient. Whereas, user/Patient.write enables the provider to update patient records based on their role.

With this, healthcare organizations can control the data access at a granular level, and it is essential for healthcare environments, where unrestricted access can lead to compliance violations. This is where SMART scopes ensure that third-party applications only access the minimum necessary data, aligning directly with HIPAA compliance for API.

Another advantage of the SMART on FHIR scope is context-based authorization, which helps in restricting access based on patient context, user context, and system context. By embedding SMART scopes, healthcare organizations can reduce the risk of overexposure and unauthorized data access.

Most importantly, when it is combined with OAuth 2.0, it creates a robust authorization layer ensuring healthcare data is shared securely, efficiently, and in compliance with regulatory standards.

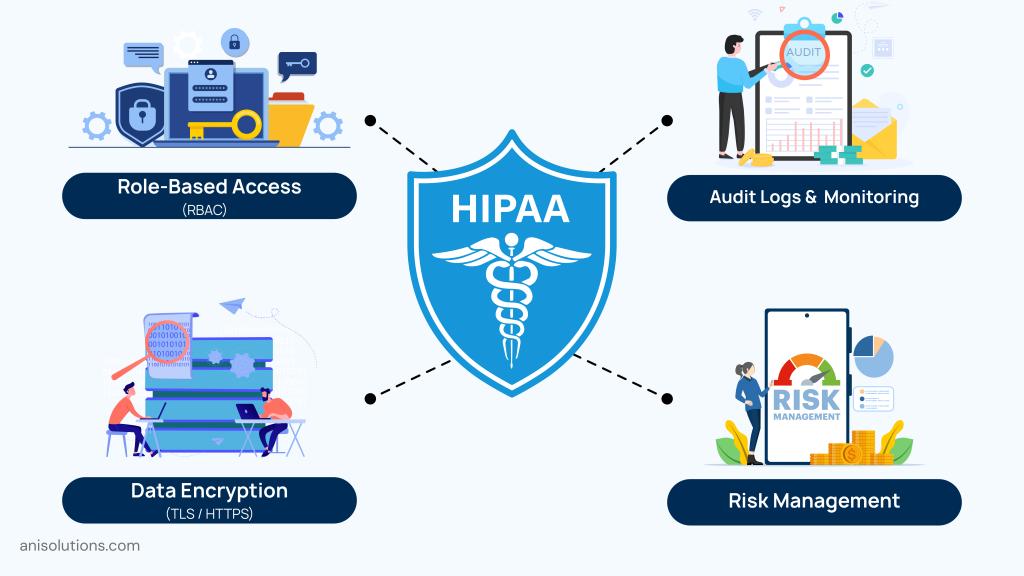

HIPAA Compliance for FHIR APIs

With the increased adoption of FHIR APIs, the need for HIPAA compliance for APIs is becoming crucial. While HIPAA compliance does not mention APIs or FHIR standards explicitly, any system that creates, transmits, or stores PHI must comply with the HIPAA Security Rule.

Here are the HIPAA compliance requirements for FHIR APIs that must be implemented for both administrative and technical security:

Administrative Safeguards

• Role-Based Access Control (RBAC): This ensures that only authorized users can access patient data and only data that is relevant to their role.
• Audit Logs & Monitoring: With this, it is possible to track who accessed what data, when, and from where, along with the changes made to the data.
• Risk Management: Under this requirement, the healthcare organizations must regularly evaluate vulnerabilities in API infrastructure and fix them on time.

Technical Safeguards

• Data Encryption: Healthcare organizations must end-to-end encrypt their data pathways to protect patient data in transit and at rest. They can use TLS/HTTPS to prevent interception in transmission and use secure cloud environments to protect data at rest.
• Access Control & Minimum Necessary Rule: It is important to restrict data access to a minimum and share only the data that is required by that role or patient. If the APIs are overexposed and give broad access scopes, then HIPAA compliance is violated, leading to penalties.

Audit & Accountability

• Breach Notification Requirements: If PHI is exposed through APIs, the healthcare organization must notify affected parties and report it within defined regulatory timelines.
• Business Associate Agreements (BAAs): Any third-party app or service accessing PHI via APIs must sign a BAA to ensure shared responsibility for data protection.

In short, HIPAA compliance in API ecosystems is not just about securing infrastructure; it’s about enforcing accountability, traceability, and least-privilege access across every connected system.

Advanced Security Best Practices for Healthcare APIs

Implementing foundational standards such as OAuth 2.0, SMART scope, and HIPAA compliance is essential; it is not sufficient to protect data from all angles. To truly secure modern healthcare systems, organizations must adopt advanced,proactive measures that address evolving threats in API-driven environments.

Here are some of the advanced healthcare API security measures that extend the foundational standards:

• API Gateway & Rate Limiting: An API gateway protects patient data by managing and filtering incoming traffic. Moreover, rate limiting helps in preventing abuse, such as excessive requests or denial-of-service (DoS) attacks, ensuring system stability and controlled access to sensitive endpoints.
• Threat Detection & Anomaly Monitoring: With AI-driven monitoring tools, healthcare organizations can detect unusual API behavior and intercept any cyberattacks. For example, sudden spikes in data access or repeated requests across multiple patient records can indicate potential security threats, enabling faster response and mitigation.
• Token Lifecycle Management: Access tokens should be short-lived to reduce the risk of misuse. Secure refresh token mechanisms, token rotation, and revocation strategies are critical to maintaining control over session integrity and preventing unauthorized reuse.
• Avoiding Over-Scoping Access: Overly broad permissions remain one of the most common security gaps. Rather than granting complete or blanket access for instance patient/*.read, organizations should enforce granaulr SMART scopes allowing only minimum necessary access.
