Is your clinical decision support helping or becoming just another source of noise?

If your CDS is generating more noise than clinical and actionable insights, then you are not alone. Many of our clients experience alert fatigue and clinician burnout due to constant notifications from CDS systems, as most of these alerts are low-value or without context.

And they are not the only ones, as studies published on PubMed Central point towards a serious issue. The traditional systems are not able to efficiently integrate with the clinic’s workflows, leading to alert fatigue, mental fatigue, and ultimately clinician burnout.

The reason this scenario is becoming common is that many CDS tools work on a rule-based system, where a certain set of events triggers an alert regardless of context. For example, a spike in a patient’s heart rate may trigger an alert, even if the patient is performing normal physical activity.

Over time, these constant low-relevance alerts lead to alert desensitization, resulting in clinicians ignoring a clinically urgent alert in the noise of generic alerts.

This is why we need real-time, context-aware clinician decision support.

What a CDS system needs to do is not flood clinicians with every alert, but deliver the right insight at the right time, within the clinic’s workflows. That’s exactly what CDS Hooks FHIR integration is built for.

In this guide, we will break down how CDS Hooks deliver results directly into clinical workflows, how to implement CDS Hooks with FHIR, and how to make clinical decision-making intelligent and not reactive.

What Are CDS Hooks?

One thing that I must clear before diving into understanding CDS Hooks is that this is not an alert system or any type of SMART on FHIR workflow. It is a standardized framework developed by HL7 International to allow EHR systems to trigger external clinical decision support services in real time, based on specific events within a clinician’s workflow.

CDS Hooks works on an event-driven model, meaning that whenever a specific event happens, the EHR can call an external CDS service for insights at the right time. In simple terms, this acts as a bridge between the EHR and external clinical decision support tools to enable real-time, context-aware interactions.

In this whole process, FHIR interoperability plays an important role. It makes it possible to send clinical context, including patient data or medications, using standardized FHIR resources. Additionally, when the CDS system generates insights, that data is returned to the EHR through FHIR workflows and displayed within the EHR interface.

In short, CDS Hooks decides when to request decision support, while FHIR provides what data is used to generate that support. Together, they enable scalable and interoperable clinical decision support across systems.

For example, when a clinician opens a patient’s chart in EHR, the patient-view hook is triggered. The EHR sends relevant patient data, such as conditions, via FHIR to the CDS service. The CDS analyzes the data and identifies that the patient is overdue for preventive screening, and sends that insight back to EHR.

This transforms the CDS into an intelligent decision support system, making everyday decisions more data-driven and accurate.

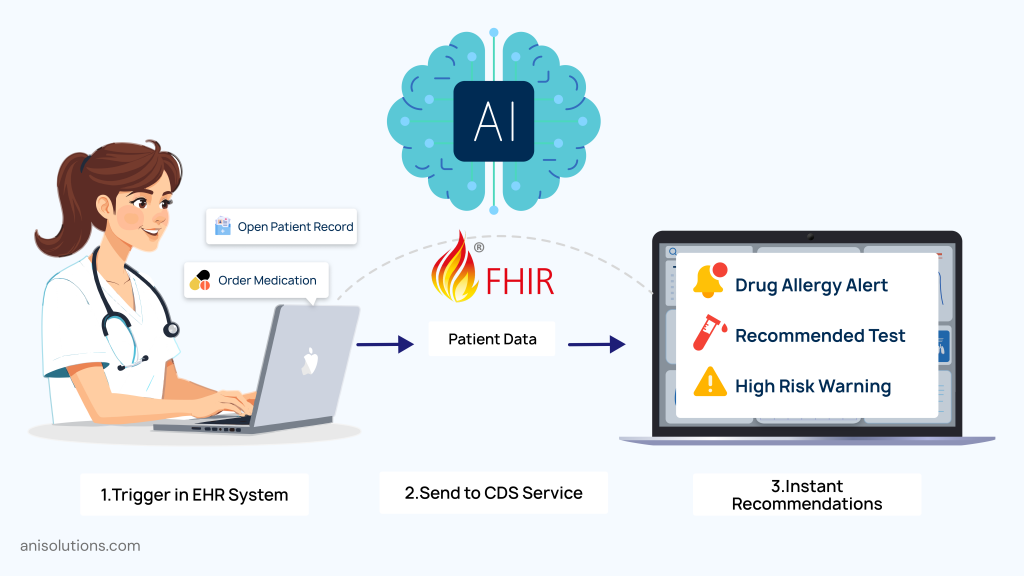

How CDS Hooks Work Inside EHR Workflows?

When our clients first hear about CDS Hooks, their first question is how it works if it is not a CDS service. And what we say to them, I will tell you the same: the CDS Hooks works on a simple, event-driven model.

It starts with a specific action by a provider, leads to CDS Hooks calling the CDS service, and gets the response from the CDS service to the EHR through FHIR interoperability. This model ensures that clinical decision support is delivered at the right time, without interrupting the clinician’s workflow.

There are three common types of hooks that create a trigger, and they are patient-view, medication-prescribe, and order-select. These triggers are aligned with the clinician’s actions, such as opening the patient’s medication history, making sure that there is no alert flooding, and decision support is delivered when requested at the relevant moment.

After the specific trigger, the EHR sends relevant data to the CDS service. This data is transferred through FHIR APIs in a structured manner and includes patient demographics, medications, and current conditions. The CDS service analyses this data and sends back the insights through FHIR interoperability.

When the response is returned, it is shown in the form of cards over the EHR interface. This way it does not interfere with ongoing tasks and clinicians can notice it immediately, taking the appropriate decision at the right time.  This enables a true EHR workflow automation that reduces work and clinician burnout due to alert fatigue.

For example, during medication prescribing, a CDS Hook can trigger a real-time check for drug interactions and return a recommendation instantly within the prescribing screen.

CDS Hooks Cards: Delivering Actionable Clinical Insights

We talked about the response being delivered in the previous point, and here we will understand how these cards are delivered directly within EHR workflows.

By now, you might have understood that CDS Hooks enable EHR workflow automation and show context-aware insights. This alone makes it much more efficient than traditional CDS services that flood the EHR with generic alerts triggered by rules set by clinicians.

And in this, the cards that show on the EHR interface make it even more efficient. There are three types of cards that deliver CDS insights:

1. Information Cards: These cards show contextual data that does not need immediate action; they are like updates on certain patients. An example of this is displaying a patient’s overdue preventive screening. In short, they keep clinicians aware without disrupting their work.
2. Suggestion Cards: This is a step up from just informing, as they recommend specific action based on the specific data. For example, suggesting a change of medication due to the patient’s history of allergic reaction to it.
3. App/Link Cards: These cards connect with other external apps, such as a risk calculator or a clinical decision tool, and allow clinicians to calculate health risks or generate insights based on pre-filled patient data.

However, if these cards are not designed carefully, they can fail to generate context-aware alerts and lead to the same alert fatigue as traditional CDS services. So, to avoid this, the card must be relevant to the clinical context, timely within the workflow, and have a clear and concise presentation.

When implemented correctly, CDS Hooks cards transform clinical decision support from disruptive alerts into targeted, workflow-integrated guidance that enhances both clinician efficiency and patient care.

CDS Hooks vs SMART on FHIR: Choosing the Right Tool

As healthcare systems move toward interoperability, two standards often come up: CDS Hooks vs SMART on FHIR. While both are part of the FHIR ecosystem, they serve very different purposes within clinical workflows.

At a high level, CDS Hooks is designed for event-driven, real-time decision support, while SMART on FHIR enables user-initiated applications that provide deeper functionality.

Here’s how they compare:

In practice, the choice between CDS Hooks and SMART on FHIR is not about selecting one over the other—it’s about using the right tool for the right context.

CDS Hooks is ideal when clinicians need instant, context-aware guidance without disrupting their workflow. On the other hand, SMART on FHIR is better suited for scenarios that require deeper analysis, visualization, or user interaction.

In many modern implementations, these two approaches are combined. A CDS Hook can trigger a recommendation and include a link to launch a SMART on FHIR app for further exploration.

Together, they enable a more flexible and powerful approach to embedding clinical decision support in EHR workflows.

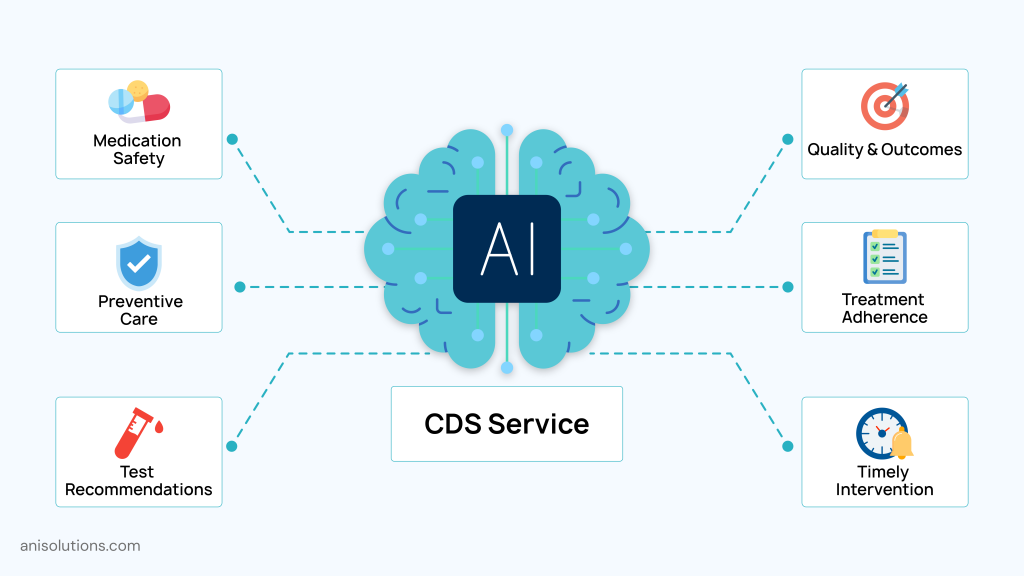

Use Cases: Enhancing Clinical Decision Support Systems

It becomes much easier to see the impact of CDS Hooks FHIR integration on some day-to-day use cases. When it is integrated with EHR and clinical workflows, it enables more accurate, timely, and proactive interventions.

The first use case is medication safety and drug interaction alerts. Many patients are allergic to some of the medications, and physicians can’t remember all of them. That’s why, when a clinician prescribes a medication, the medication-prescriber hook triggers and gives a real-time suggestion on prescribing alternatives for that medication, improving patient care safety.

One more effective application of CDS Hooks is in preventive care. For instance, a clinician opens patient records, the patient-view hook triggers, and analyzes any care gaps, overdue screenings, or issues with treatment adherence. This helps clinicians take preventive actions at the right time, rather than reviewing patient records manually.

Another big advantage of CDS Hooks is with EHR workflow automation by enabling smart decision-making. When a clinician is ordering a lab test for a patient based on their health condition, the order-select hook can recommend some tests, improving accuracy and reducing unnecessary testing.

Additionally, CDS Hooks also make delivering value-based care and generating quality reporting much more efficient. By surfacing relevant insights at the point of care, it helps providers meet quality measures, close care gaps, and improve patient outcomes—all while maintaining workflow efficiency.

Implementation Guide: How to Implement CDS Hooks with FHIR

When it comes to implementing CDS Hooks FHIR integration, it needs a strategic approch aligning with clinical workflows, interoperability standards, and real-time decision support. Because it is not just about integrating the CDS service, but to embed it seamlessly into EHR workflows.

• Identify High-Impact Workflow Triggers: The first step is to identify high-impact events to set workflow triggers, as not every action needs decision support. That’s why focusing on events that depend on timely insights to improve outcomes and efficiency is important. For instance, medication prescribing or patient-chart viewing are foundational for CDS Hooks implementation.
• Build CDS Service Endpoint & Discovery Endpoints: This is the core of the CDS Hooks, as it connects with other external services such as CDS services, which is why it is important to carefully build CDS service endpoints. In addition, a discovery endpoint is required to inform the EHR about available hooks, ensuring seamless communication between systems.
• Define FHIR Data Context: Once the infrastructure is in place, the next step is to define the FHIR data context. Each CDS Hook must specify what clinical data is required—such as patient demographics, medications, conditions, or lab results. Using standardized FHIR resources ensures interoperability and consistency across systems.
• Design Effective Cards: The CDS Hooks cards deliver the final output to clinicians, which is why it is important to design in a way that clinicians will understand instantly. Cards should be concise, actionable, and context-aware to avoid contributing to alert fatigue. Poorly designed outputs can undermine even the most advanced CDS logic.

Finally, organizations must ensure that the implementation matches clinical workflows and performance requirements. Real-time response is critical—delays can disrupt care delivery and reduce adoption.

When implemented correctly, CDS Hooks with FHIR enables scalable, interoperable, and workflow-integrated clinical decision support that enhances both efficiency and patient outcomes.

Challenges & Best Practices

While CDS Hooks offers a powerful framework for embedding clinical decision support into EHR workflows, its implementation comes with practical challenges that organizations must address carefully.

One of the biggest challenges is alert fatigue. Even with CDS Hooks, poorly designed logic or excessive triggers can overwhelm clinicians. If every workflow event generates a recommendation, the system risks recreating the same problems as traditional CDS. To avoid this, organizations should prioritize high-value, context-aware triggers and ensure that only clinically relevant insights are delivered.

Another critical factor is latency in real-time workflows. CDS Hooks operates in milliseconds, and any delay in response from the CDS service can disrupt the clinician’s workflow. This makes performance optimization essential, including efficient data retrieval, fast processing, and reliable infrastructure.

Workflow alignment is equally important. CDS Hooks must integrate seamlessly into existing clinical processes. If recommendations appear at the wrong time or require extra steps, clinicians are likely to ignore them. Designing around actual user behavior—not theoretical workflows—is key to adoption.

From a technical standpoint, organizations must also consider data security and compliance. Since CDS Hooks relies on exchanging patient data using FHIR, it is essential to protect this information during transmission. This includes implementing secure APIs, authentication mechanisms, and encryption standards to ensure compliance with healthcare regulations like HIPAA.

Best Practices to Follow

• Focus on clinically meaningful triggers, not volume.
• Ensure low-latency responses for real-time usability.
• Design non-disruptive, context-aware cards.
• Align CDS logic with actual clinical workflows.
• Implement strong security and data protection measures.

By addressing these challenges with a strategic approach, healthcare organizations can maximize the value of CDS Hooks—delivering intelligent, real-time decision support without adding complexity or burden to clinical workflows.
