A report by the HIPAA Journal shows that in 2024, nearly 197 million patients were affected by cyberattacks. And if you open the report, you will see the number is increasing rather than decreasing every year.

Today, nearly every healthcare system is connected with at least five to six other systems, and care delivery depends on the connected ecosystem. This means that the patient data goes through multiple systems daily, increasing the attack surface significantly.

This is one of the reasons why attacks are increasing, as each new integration means a new possible entry point. If these connections are not protected, then securing the Protected Health Information (PHI) becomes too difficult.

Even a single weak link in integration can affect the sensitive patient data across the systems. And the traditional perimeter-based security, where external traffic is verified or blocked, and internal traffic is trusted completely, is no longer viable.

This is exactly why healthcare organizations need a robust healthcare integration security architecture that secures every entry point. They need an architecture built around an interoperability-first security approach where every device, user, and third-party application is verified continuously.

Most importantly, it not only changes the security approach but also helps you build secure API governance, zero trust policies, identity-based access control, and encrypted data channels. You can support operational continuity, ransomware protection, regulatory compliance, and scalable digital transformation initiatives.

In this blog, we will break down how to secure PHI across connected healthcare systems, healthcare integration security best practices, and key strategies to build an integration that is secure, scalable, and compliant.

Understanding PHI Security Risks Across Connected Systems

As I said in the introduction, modern healthcare depends on continuous data exchange. Your organization must connect your EHR with labs, pharmacies, telehealth platforms, billing systems, and RPM devices.

While these connections improve care coordination, they also increase the attack surface by creating multiple exposure points across the connected ecosystem. Moreover, the PHI constantly moves through these points:

• APIs
• Cloud platforms
• Interface engines.
• External vendors.
• Interoperability layers.

And as the number of these connection points increases, it becomes difficult to maintain consistent security in healthcare integration environments. In these points, APIs are one of the biggest attack surfaces.

Today, healthcare organizations are using FHIR APIs and cloud-based integrations for exchanging clinical and operational information. If you don’t implement encryption, token validation, authentication, and continuous monitoring, attackers can easily access sensitive patient data.

Another point is interface engines, as they bring major interoperability security risks. These engines connect multiple endpoints and continuously transfer PHI across connected ecosystems. This can expose a large amount of patient data if the engine is breached.

One more point that you need to secure is cloud integrations and third-party applications. If any connected vendor lacks a strong integration security framework, attackers can enter through it, and the entire ecosystem can be compromised.

Similarly, fragmented access control can also endanger the PHI security in healthcare integration as it becomes difficult to maintain separate access controls, permission structures, and identity management models without centralized governance.

However, along with these external threats, there are also ransomware attacks, insider threats, and unsecured API endpoints that can impact the PHI security. This is especially why PHI security requires end-to-end governance rather than isolated security controls.

It is not enough to just secure the system; you must secure APIs, third-party integrations, cloud environments, and interoperability layers in the connected ecosystem. Moreover, you also need to prepare the incident response procedure because, in reality, breaches and ransomware can always happen.

That’s why, if you want to respond on time, having continuous governance, centralized healthcare integration audit logging, backup recovery strategies, and coordinated response is essential.

With this framework in place, you can significantly reduce the impact on operations and protect sensitive patient data during breaches.

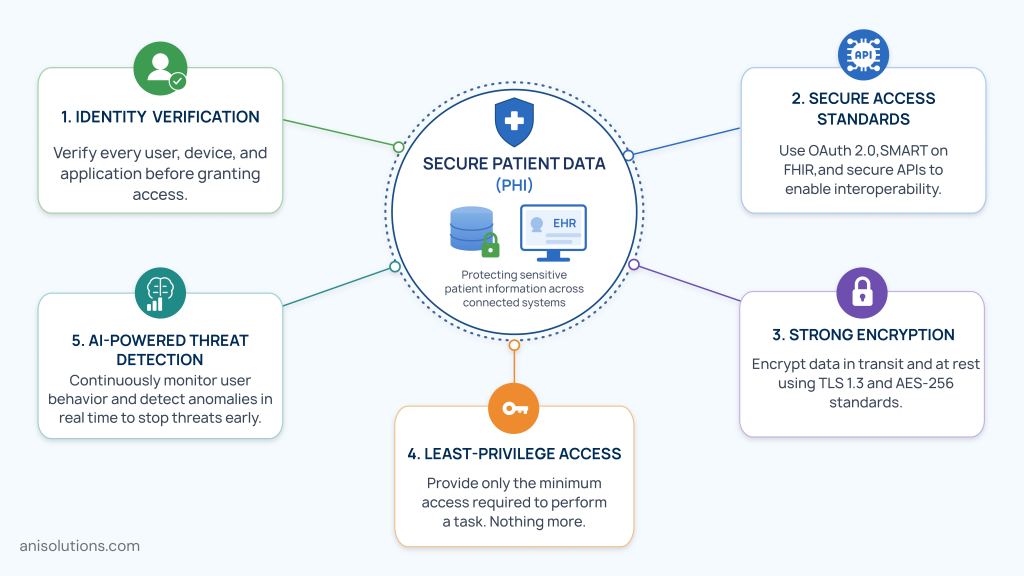

Building a Zero Trust Security Framework for Healthcare Interoperability

At first, the healthcare security approach was to trust internal traffic completely while blocking or verifying the external traffic. This approach was valid till internal systems were not integrated with external ones.

But today, every clinical decision and care delivery requires a connected ecosystem. Without this, you can’t deliver a seamless care experience, and this is where the perimeter-based approach falls short.

This is why taking an interoperability-first security approach is necessary, and in this, a zero-trust policy is especially crucial. Because in modern healthcare, you can’t block external traffic, so every user, API request, and third-party application must be verified to determine whether it is internal or external.

If you fail to do this, then it affects the seamless data exchange and can increase the security risks tremendously. And the best way to achieve this is to use secure authentication and authorization standards such as OAuth 2.0, SMART on FHIR, and encryption standards including TLS 1.3 and AES-256.

When you pair this with least-privilege access and AI-powered behavioral analytics, you can take PHI security to another level. By limiting access and identifying any irregularities and suspicious activity before it becomes a security risk, protecting sensitive patient data becomes much easier.

In short, with continuous authentication, verification, and AI-driven analysis, the chances of missing any suspicious access patterns increase, significantly decreasing the security risks.

SOC 2 Compliance & Vendor Security Verification

Right now, third-party applications are a must in the modern healthcare landscape. And you need to integrate with cloud platforms, telehealth providers, AI applications, billing systems, analytics tools, and other external clinical decision support.

However, before integration, you must thoroughly verify the vendor because if the third-party vendor does not follow secure practices, it can expose PHI across connected systems. To evaluate the vendor security evaluation, SOC 2 compliance is one of the best frameworks.

It is an auditing framework that is developed by the American Institute of Certified Public Accountants (AICPA). This helps healthcare organizations evaluate how vendors manage customer data based on key principles such as security, availability, confidentiality, processing integrity, and privacy.

You can easily see whether vendors follow structured security practices for handling sensitive patient data and maintain secure operational environments. While SOC 2 is not mandatory like HIPAA, it gives you confidence that the vendor has security controls and operational governance processes in place.

Before integrating with third-party vendors, you need to assess some of these key points:

• Access Management Controls: This is the first thing that you need to verify: how the vendor manages user authentication, role-based access, privileged accounts, session controls, and multi-factor authentication. Because if the vendor has weak identity management, it can lead to unauthorized access and PHI exposure across connected systems.
• Audit Logging & Monitoring Capabilities: Another important factor is that they should maintain centralized healthcare integration audit logging capable of activity, API access, authentication events, data movement, and administration actions. The vendor must have strong auditing capabilities for quick incident response, incident investigation, compliance reporting, and interoperability governance.
• Incident Response Readiness: One more point to evaluate the incident response documentation, ransomware recovery strategies, breach notification procedures, and continuous security monitoring processes in place.
• PHI Handling & Data Governance Policies: The healthcare vendor must show how they store, encrypt, transmit, retain, and dispose of PHI. This includes reviewing encryption standards, backup protection mechanisms, API security practices, and cloud infrastructure governance.
• Third-Party & Subprocessor Risk: Many healthcare vendors rely on additional cloud providers, subcontractors, or external processing services. Organizations should understand how vendors manage downstream security risks throughout the extended interoperability ecosystem.

In short, while SOC 2 compliance for healthcare vendors is not mandatory for HIPAA compliance, it plays a major role in building a robust healthcare integration security architecture best practices.

Audit Logging & Data Lineage Across Healthcare Integrations

With the increasing connectivity, you must maintain PHI visibility as it moves across the connected environments. However, without centralized monitoring and traceability, you can’t track the data across APIs, interface engines, cloud platforms, EHRs, and external healthcare vendors.

This is where healthcare integration audit logging, and data tracking have become essential in modern healthcare integration. Here are some of the necessary factors for improving visibility:

• Centralized Audit Logging Across Connected Systems: Healthcare organizations need to centralize their logging to collect every activity data from APIs, interface engines, EHRs, and other integration points. This improves visibility across the entire connected healthcare ecosystem.
• Tracking PHI Access & Data Movement: Audit logs should capture who accessed PHI, when the access occurred, what data was modified, and where the information was transmitted. This helps organizations maintain accountability and strengthen PHI security in healthcare integration environments.
• Maintaining End-to-End Data Lineage: Data lineage tracking helps organizations understand how patient information flows across multiple connected systems. This is critical for identifying integration failures, tracing security incidents, validating interoperability workflows, and supporting compliance investigations.
• Improving Incident Investigation & Compliance Reporting: Another important capability is detailed audit trails to simplify forensic investigations during ransomware attacks, API misuse, insider threats, or unauthorized access attempts. They also support HIPAA audit readiness and regulatory requirements.
• AI-Assisted Threat Detection & Behavioral Monitoring: Modern interoperability environments increasingly use AI-driven log analysis tools to identify unusual patterns, abnormal API behavior, suspicious activity, and unauthorized data transfers in real time.

As healthcare interoperability environments continue to expand, organizations can no longer rely on isolated logging systems or fragmented monitoring approaches. Strong healthcare integration, audit logging, and data lineage strategies provide the visibility needed to secure connected systems, maintain compliance, and strengthen operational resilience across the healthcare ecosystem.

RBAC Design for Integrated Healthcare Systems

In connected healthcare environments, not every user, application, or vendor should have the same level of access to patient information. However, as healthcare organizations integrate EHRs, telehealth platforms, billing systems, cloud applications, and third-party healthcare tools, managing permissions across the ecosystem becomes significantly more challenging.

A clinician may require access to complete patient records, while a billing team only needs financial data, and a third-party integration may only require limited API access. Without structured access governance, organizations increase the risk of unauthorized PHI access, insider threats, and compliance violations.

This is why a strong RBAC design for healthcare systems is essential for maintaining security across connected interoperability environments.

• Role-Based Access Across Connected Systems: Healthcare organizations should assign permissions based on specific clinical, operational, or administrative responsibilities. This helps ensure users only access the systems and PHI necessary for their role.
• Preventing Unauthorized PHI Exposure: RBAC minimizes excessive permissions and reduces unnecessary access to sensitive patient data across APIs, EHRs, cloud systems, and interoperability platforms.
• Managing Vendor & Third-Party Access: External vendors and healthcare applications should receive limited, purpose-specific, and time-controlled access to connected systems to reduce third-party security risks.
• Supporting Least-Privilege Security Principles: Modern healthcare integration security architecture depends heavily on least-privilege access controls to increase interoperability security risks.
• Balancing Security With Clinical Workflows: RBAC frameworks must support security without disrupting patient care delivery. But overly restrictive permissions can create workflow inefficiencies, while weak access controls increase interoperability security risks.
• Continuous Access Monitoring & Permission Reviews: Healthcare organizations should regularly audit user permissions, monitor privileged accounts, and remove outdated access rights to reduce long-term security risks.

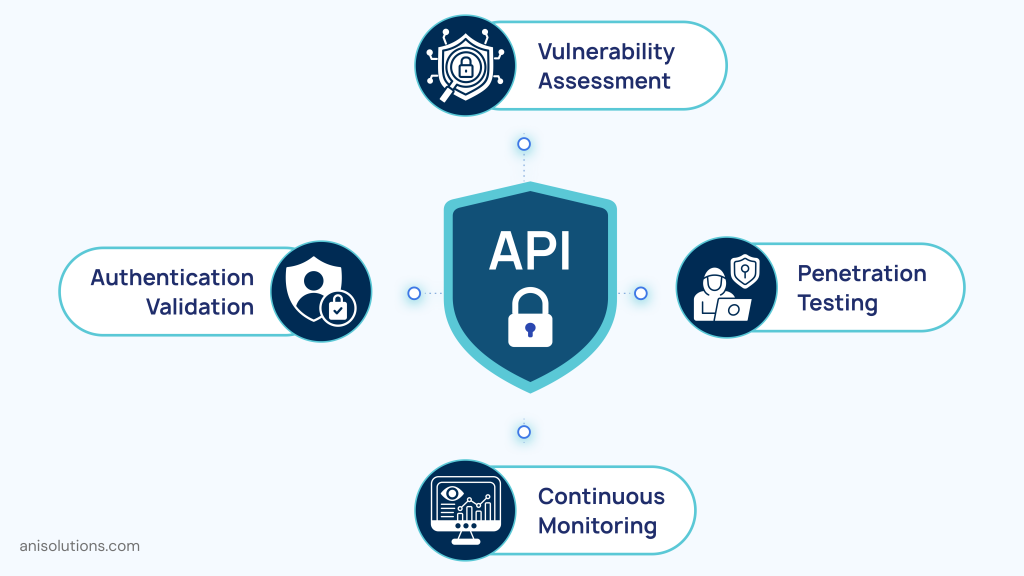

Penetration Testing & API Vulnerability Assessment

Modern healthcare interoperability relies heavily on APIs, interface engines, cloud integrations, and connected healthcare applications to exchange Protected Health Information (PHI) in real time.

While these integrations improve interoperability and operational efficiency, they also introduce multiple security exposure points across the connected ecosystem. Attackers increasingly target weak APIs, misconfigured endpoints, outdated middleware, and vulnerable third-party integrations because a single compromise can provide access to multiple connected systems simultaneously.

This is why continuous healthcare API vulnerability assessment and penetration testing have become critical components of healthcare integration security architecture.

• Identifying API Security Vulnerabilities
  Healthcare organizations should regularly assess APIs for authentication weaknesses, insecure token handling, excessive data exposure, broken access controls, and misconfigured endpoints that could expose sensitive patient data.
• Testing Interface Engines and Integration Layers
  Interface engines continuously route PHI between EHRs, labs, payer systems, and third-party healthcare applications. Penetration testing helps identify weaknesses within these interoperability workflows before attackers can exploit them.
• Validating Authentication and Encryption Controls
  Security assessments should verify whether APIs and connected systems properly implement OAuth 2.0, SMART on FHIR authentication, TLS encryption, session controls, and secure token management practices.
• Evaluating Third-Party Integration Risks
  Connected healthcare vendors, cloud platforms, and external applications should also undergo regular security testing to identify vulnerabilities that may impact the broader interoperability ecosystem.
• Supporting Continuous Remediation and Monitoring
  Healthcare API vulnerability assessment should not be treated as a one-time activity. Organizations need continuous remediation workflows, ongoing monitoring, and recurring security validation to address evolving threats.
• Strengthening Ransomware and Breach Prevention Strategies
  Proactive penetration testing helps organizations detect exploitable weaknesses early, reducing the likelihood of ransomware attacks, unauthorized PHI exposure, and operational disruption across connected healthcare systems.

As healthcare environments become increasingly API-driven and cloud-connected, security teams can no longer rely only on preventive controls. Continuous penetration testing and vulnerability assessment provide the visibility needed to identify hidden weaknesses, strengthen interoperability security, and maintain resilient healthcare integration environments.
